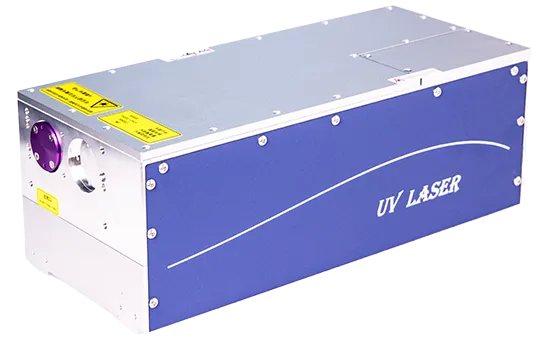

ZG Series

ZG-NS-355-5

The new ZG series adopts intra-cavity frequency doubling technology for applications in precision marking processes. With its superb cost performance, it is widely used in the extreme manufacturing field

Download

Request Information

Features

Small size, light weight and price advantage

TEM00 mode output

Opto-mechanical integration design, can work by providing switching power supply

Adjustabl repetition rate

Applications

High-end electronic products appearance LOGO

PCB, EPC QR code marking

Metal or non-metal plating removal

Marking of air switches, low-voltage appliances (flame retardant materials)

Food, PVC pipe, pharmaceutical packaging, cable wire (HDPE, PO, PP, etc.) material marking

Sample Display

Parameters

ZG-NS-355-5
Output Characteristics
Wavelength	355nm
Max Power	5W@30kHz
Repetition Rate	20kHz~200kHz
Pulse Width	20ns-100ns
Pulse Energy Stability (rms)	＜3% rms
Power Stability	＜2%rms
Beam Characteristics
Spatial Mode	TEM00
Beam Quality	M2＜1.2
Polarization Ratio	＞100:1(horizontal)
Beam Diameter at Exit	1.1mm±0.2mm
Divergence Full Angle (1/e²)	＜2mrad
Circularity	＞90%
Beam Pointing Stability	≤±25μrad/℃
Working Conditions/Environmental Requirements
Power Supply	12VDC±1V; ≥200W switching power supply
Warm-up Time	Standby to ready＜10 minutes; cold start to readiness < 30 minutes
Temperature Range	15~30°C during working hours; 0~50°C during non-working hours
Humidity Range	10~70% without condensation
Cooling Requirements	Water cooling, cooling capacity≥200W, accuracy±0.5℃, flow rate≥4L/min
Physical Properties
Laser Dimensions	369.5mm x 160mm x136mm（L x W x H）
Laser Weight	11kg
Water Chiller Dimensions	270mm x 315mm x 305mm（L x W x H）
Water Chiller Weight	15kg
