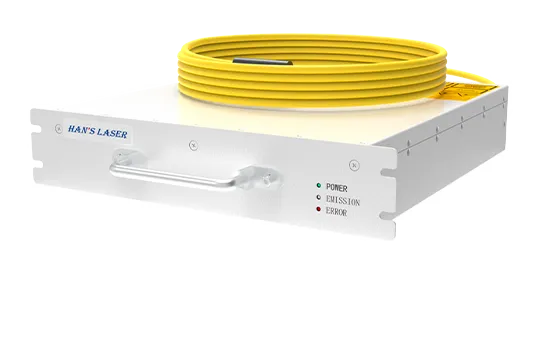

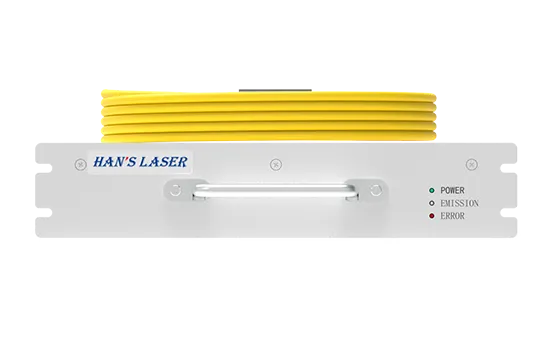

CW Fiber Laser - Single Module

Single Module 500 W

Power range from 500W to 6000W. Contact us for more power models and details!

It's compact and lightweight, equipped with a newly-designed module, which has higher photoelectric conversion rate and can pump more energy.

It's equipped with a new generation of self-developed electric control system, making the equipment more compatible and easier to operate.

It has real-time internal monitoring and fast data feedback response, with pulse modulation response in the micro second range.

It's also equipped with Han's laser expert-level application analysis and multiple beam quality options to furthest promote the performance of the laser.

Let us be your laser application expert!


Features

01

Single Module laser power 500-6000W

02

Customized output fiber diameter and length

03

Compact industrial design, smaller and safer

04

Higher electro-optical conversion efficiency and output stability

Applications

Mainly for the additive manufacturing industry (3D printing)

Power range 500W to 1000W (core diameter 14μm, customizable)

Compact structure, light weight and rich interfaces

Single-mode/multi-mode adjustable laser spot supports the printing of large structural parts and complex details

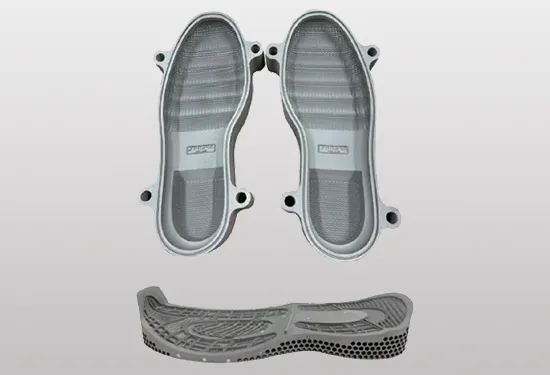

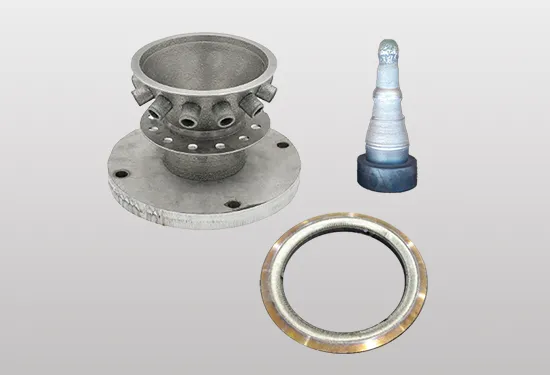

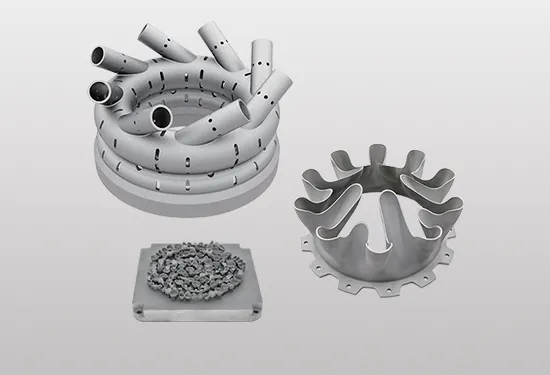

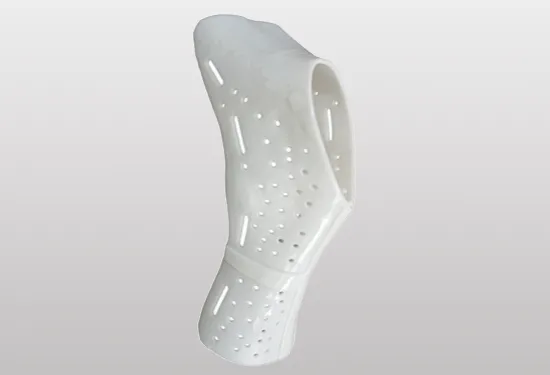

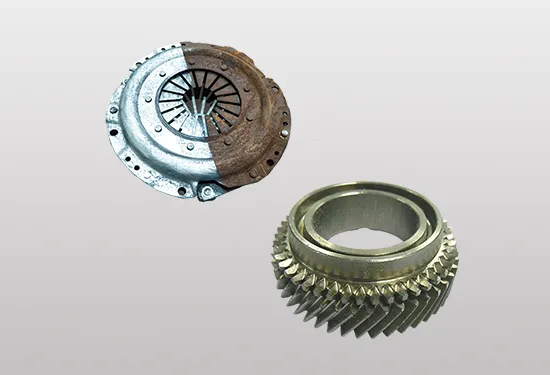

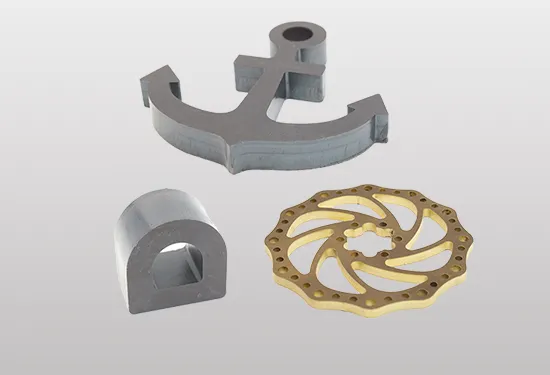

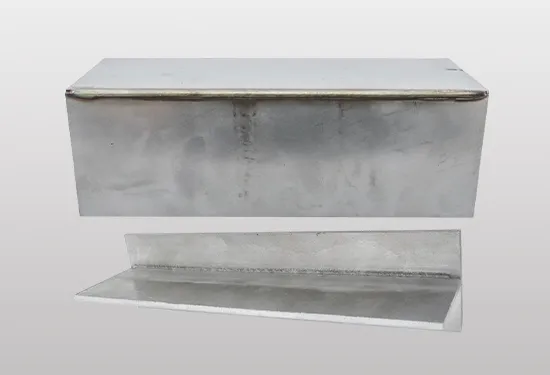

Sample Display





































Parameters

Laser
Wavelength1080nm
3DB Bandwidth3±1nm
Output ConnectorQBH/QCS
Output Fiber Length10m (Customizable)
Output Fiber Diameter14μm (Customizable)
Operating VoltageAC220V, 50Hz
Control ModeExternal control interface / network port / bus control
Cooling MethodWater cooling
Performance
Dimension485*503*120mm (including handles)
Weight<20 kg
Electro-optical Conversion Rate>40%
Power Stability±1%
Beam QualityM²<1.1
Application3D printing, cleaning, cladding, cutting, welding, precision processing
