> Products > HL Series IR Picosecond Laser > HL-PS-1064-10-S

HL Series IR Picosecond Laser

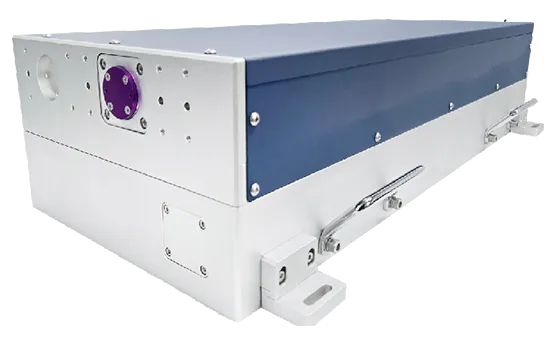

HL-PS-1064-10-S

The HL-PS-1064-10-S is compact, all-in-one design with reliable performance and widely used for processing brittle and superhard materials.

Download

Request Information

Features

All-in-one design

24/7 precision manufacturing

Adjustable number of pulses in burst

Adoption of self-developed seed sources

POL/POD output with PC remote control

Single shot repetition rate up to 4000 kHz

Applications

Precise shaping of superhard items

Deep processing of metal material

Logo marking on the surface of high-end electronics

Cutting and drilling of plastics, oxides and organic materials

Micro-machining of brittle materials such as glass, sapphire and ceramics

Traceability marking with functions such as acid etching and oxidation resistance

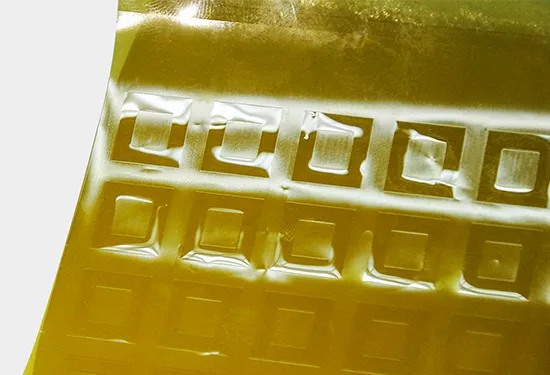

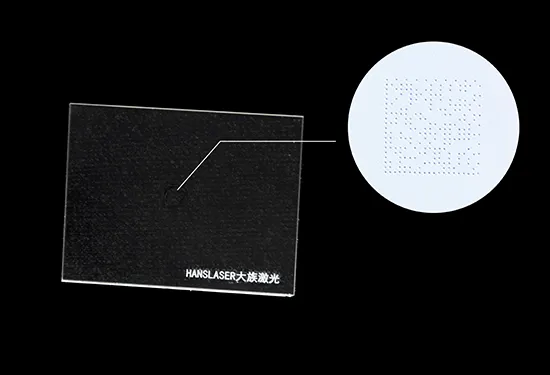

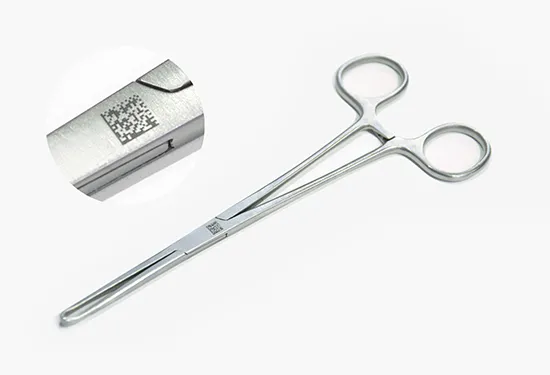

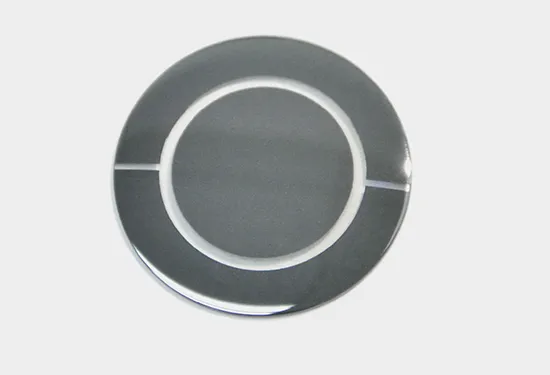

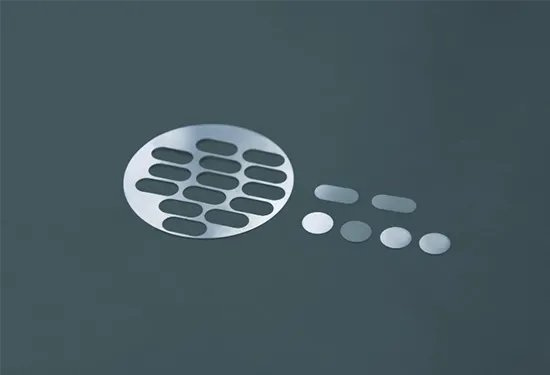

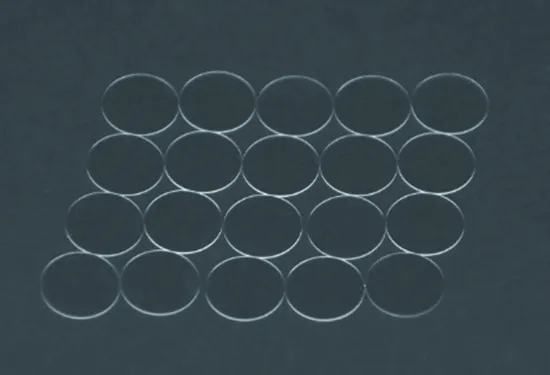

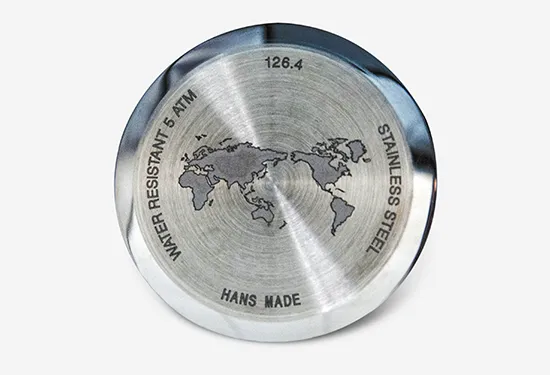

Sample Display

Parameters

HL-PS-1064-10-S
Optical Parameters
Wavelength	1064 nm
Output Power	10 W
Repetition Rate	Single Shot to 4000 kHz
Pulse Width	< 10 ps
Pulse-to-Pulse Stability (rms)	< 2 % rms
Spatial Mode	TEM00
Beam Quality	M2 < 1.4
Polarization Ratio	> 100:1 (vertical)
Beam Diameter at Exit	1.7 mm ± 0.3 mm
Divergence Full Angle (1/e²)	< 2 mrad
Circularity	> 90 %
General Parameters
Power Supply	100 VAC to 240 VAC auto-ranging;
Power Supply	50 Hz to 60 Hz auto-ranging
S	Time from standby to ready < 10 minutes
Ambient Temperature	+15 ℃ to +28 ℃ (opration), 0 ℃ to +50 ℃ (non-opration)
Relative Humidity	< 70 %, non-condensing
Cooling Requirements	± 0.1 ℃, flow rate ≥ 6 L/min, cooling capacity ≥ 500 W
Physical Properties
Laser Dimensions	650 mm × 326 mm × 159 mm (L × W × H)
Laser Weight	38.2 kg
Water Chiller Dimensions	533 mm × 326 mm × 605 mm (L × W × H)
Water Chiller Weight	33.5 kg
