CW Fiber Laser - Multi Module

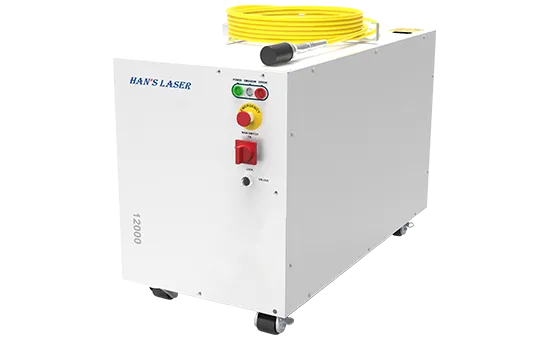

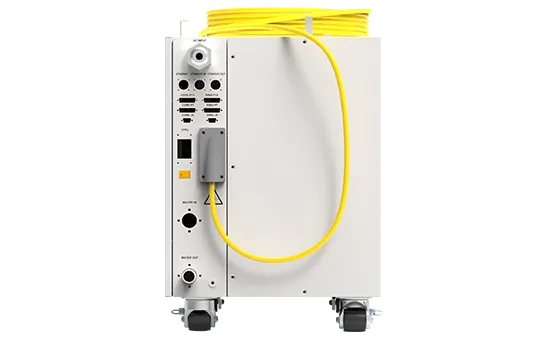

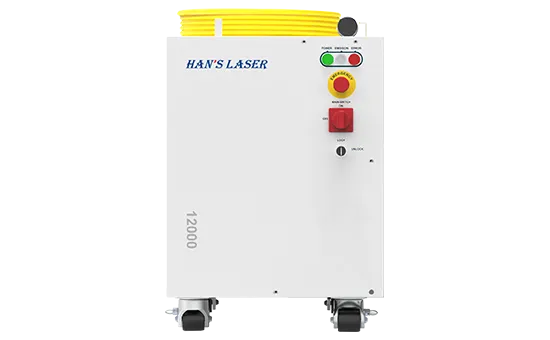

Multi Module 12000 W

Power range from 12000W to 80000W. Contact us for more power models and details!

It has not only high power stability and strong anti-reflection ability, but also high photoelectric conversion efficiency over 40%, fundamentally improving processing performance and reducing machine power consumption.

Its new generation of self-developed electronic control system is more compatible, easier and more user-friendly, and provides real-time internal monitoring, fast data feedback response and modulation pulse response in microseconds.

The laser can fully perform its function with strict beam quality control and professional application scenario analysis of Han's Laser!


Features

01

Multi Module laser power 12000-80000W

02

Higher electro-optical conversion efficiency and output stability

03

Great anti-reflection capability, no need to worry about processing high-reflection material

04

Selectable functions of wave form editing and bus controlling

Applications

Mainly for cutting, welding, cladding, etc.

Core diameter 100μm, customizable

Great anti-reflection capability, no need to worry about processing high-reflection material

High reliability, long life period, and free-operation maintenance

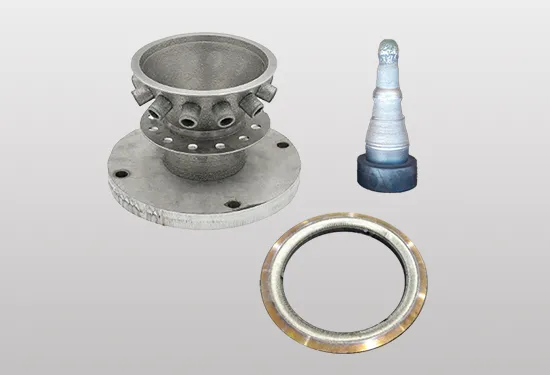

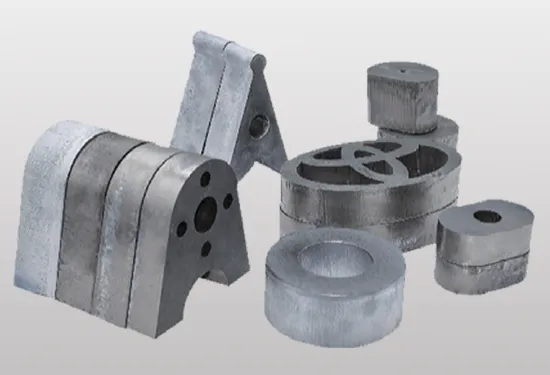

Sample Display













Parameters

Laser
Wavelength1080nm
3DB Bandwidth6±1nm
Output ConnectorQ+/HPC
Output Fiber Length25m (Customizable)
Output Fiber Diameter100μm (Customizable)
Operating Voltage360-440VAC, 50/60Hz
Control ModeExternal control interface / network port / bus control
Cooling MethodWater cooling
Performance
Dimension1254*467*128mm (excluding casters)
Weight<270kg
Electro-optical Conversion Rate>40%
Power Stability±1%
Beam QualityBPP<4
ApplicationCutting, welding, cladding, additive manufacturing, etc.
