 >   Products  >   Single-Temp Chiller  >   HC002M1-02A(B00500)

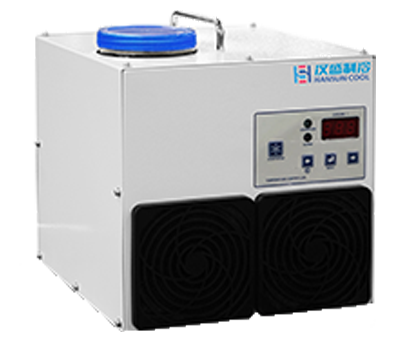

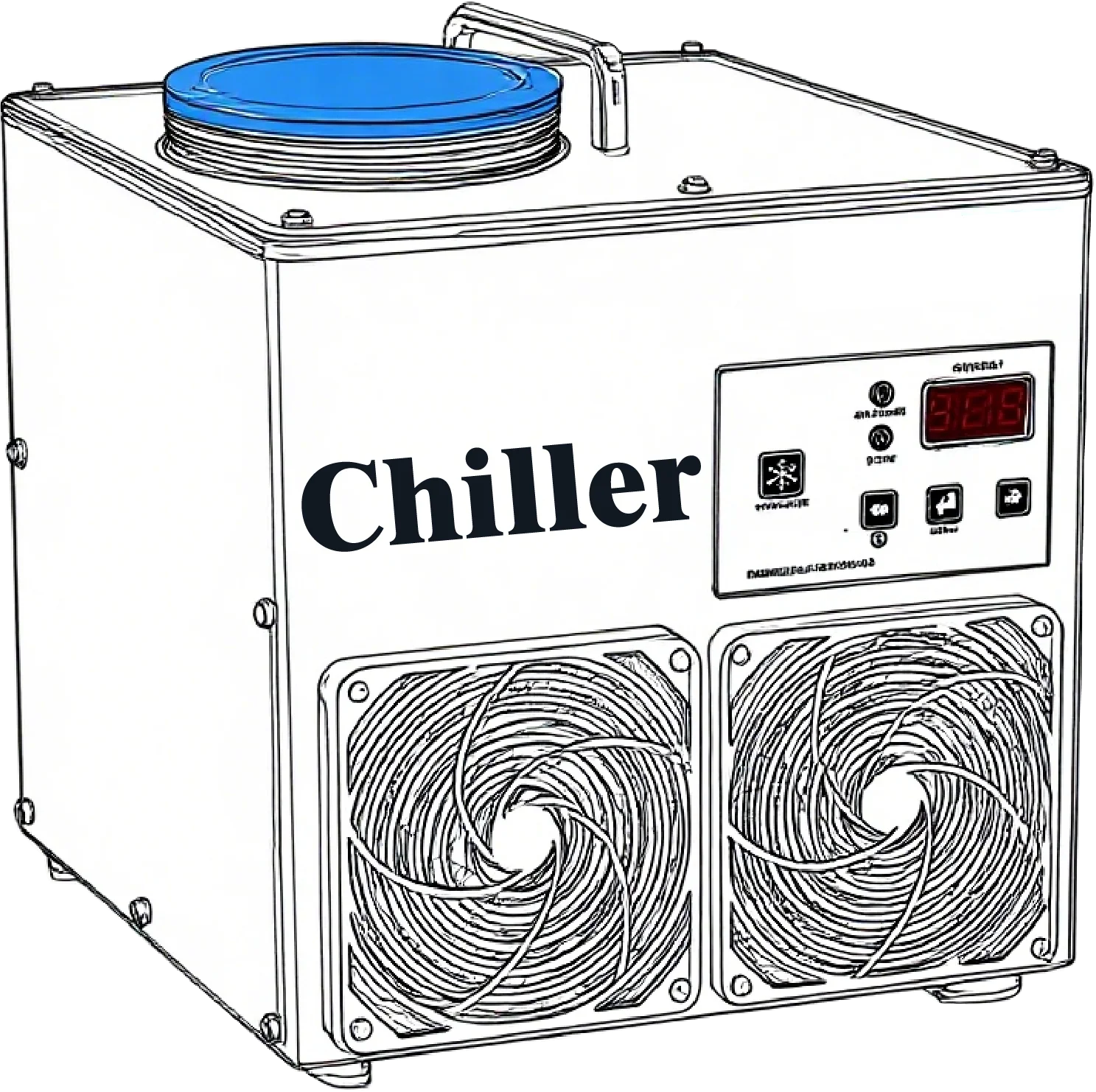

Single-Temp Chiller

HC002M1-02A(B00500)

Download
Request Information

Features

01

high precision temp control

02

environmental

03

noiseless

04

alarming

05

heating

06

antifreezing

07

easy moving

08

Hd display

Parameters

HC002M1-02A(B00500)
Parameters
Cooling Capacity(W)200 (Freezing water temp 28°C, ambient temp 35°C)
Heating Capacity(W)300
RefrigerantR134a
Type of CoolingAir cooling
Power Supply220V ~ /50Hz
Rated Power (W)610
Rated Current（A）2.8
Power Pin DefinitionPin 1: Ground wire PE; Foot 2: Live Line L; Pin 3: Neutral wire N
Signal Pin DefinitionPins 1 and 2: External control input (short-circuit start); Pins 3 and 4: Flow and temperature alarm (normally closed); The rest pins are empty.
Temp Range(℃)10~40
Temp Control Accuracy(℃)±0.5
Maximum Flow（LPM）19
Maximum Head（m）20
High/Low Temp Alarm(℃)+35 / +5
Water Tank Capacity（L）1.2
Inlet and Outlet Water Joint（mm）φ10 quick coupling (G1/2 internal thread)
Temperature Range(℃)10~43
Size L*W*H（mm）270×315×305
Net Weight（kg）15
