HWQ Series

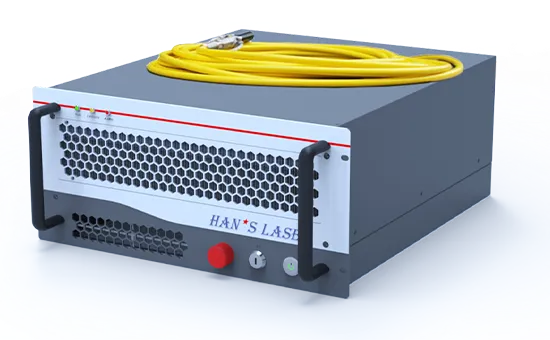

HWQ300

As a representative of third-generation laser technology, fiber lasers have unparalleled technological advantages over other lasers. Fiber lasers have had a significant and positive impact on the traditional laser industry due to their ideal beam quality, ultra-high conversion efficiency, maintenance free, high stability, and small size. The HWQ300 fiber laser is a brand new quasi continuous fiber laser independently developed by DaZu Laser, which will surely explore a wider market application in the field of laser processing.

Features

01

Continuous/pulsed mode, high peak power

02

High wall plug efficiency and low power consumption

03

Durable optical device and maintenance-free operation

04

Convenient installation and integration

05

Small welding spot, heat affected zone and deformation

06

6.Appling in consumer electronics, battery welding and cuting

Applications

Medical Equipment

Consumer Electronics

Mobile Communication

Auto Parts

Lithium Battery

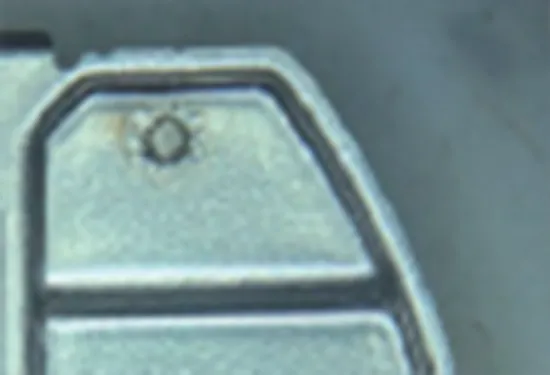

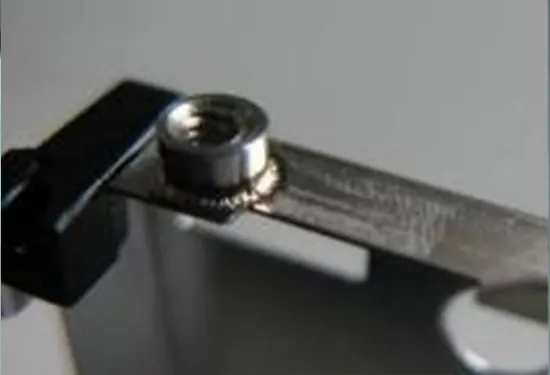

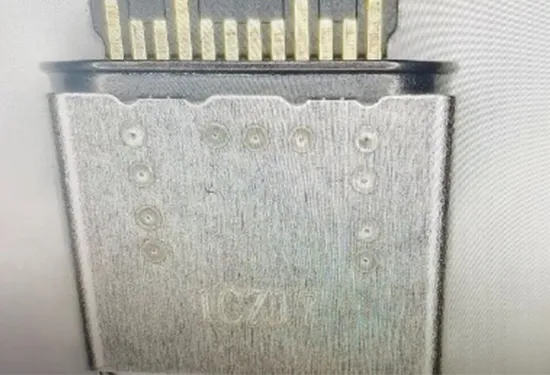

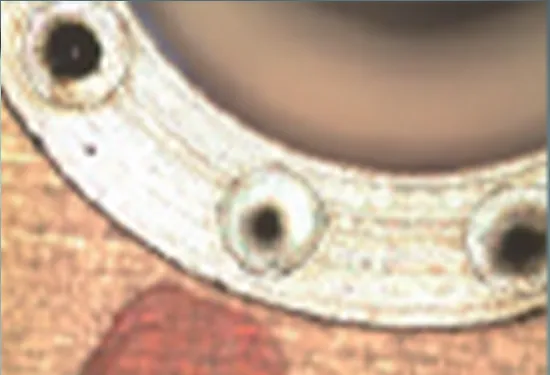

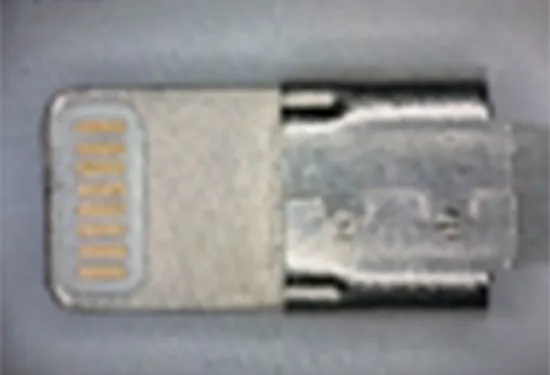

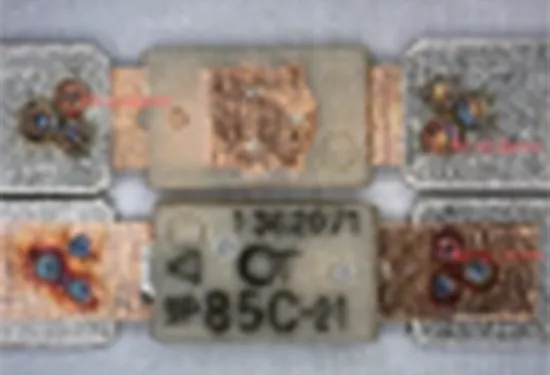

Sample Display

























Parameters

HWQ300HWQ300S
Optical Parameters
Wavelength1080 ± 10 nm
Max. Average PowerQCW Mode: 300 W
CW Mode: 300 W
Pulse Duration0.05 ~ 50 ms
Beam Quality< 6≤ 1.3
Fiber Core Diameter50/100 μm14/25 μm
Numerical Aperture0.220.07
Max. Pulse Energy30 J
Max. Peak Power3000 W
Red Guide Laser Power> 0.1 mW
Power Stability≤ 3 %
General Parameters
Supply VoltageAC 220 V ± 10 % @ 50 Hz
Operation Temperature10 ~ 35 °C
Storage Temperature- 40 ~ + 75 °C
Relative Humidity10 – 95 %
CoolingAir
House Keeping FunctionWaveform Editing / Operation Parameters / Working Mode / Diagnosis
Physical Properties
Console Dimensions505 mm × 442 mm × 190 mm
Weight< 45 kg
HWQ300HWQ300S
