 >   Products  >   HLD Series  >   HLD-180i
L
L
L
L
HLD Series

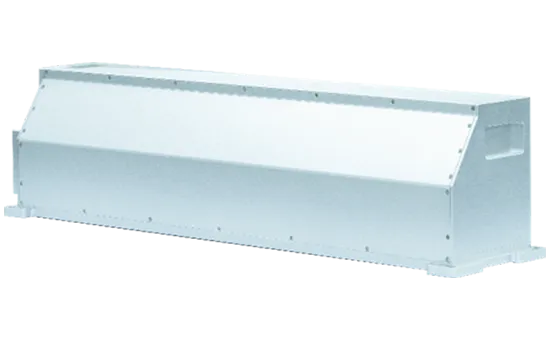

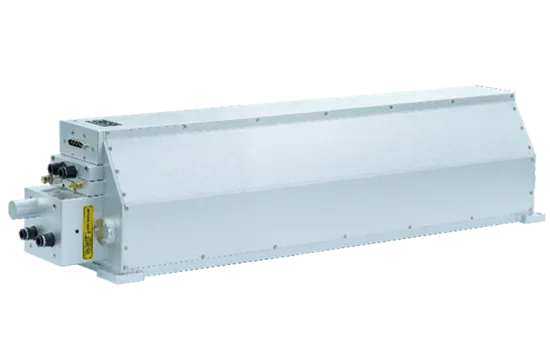

HLD-180i

HLD series CO2 lasers provide stable beam output thanks to the quality core components and sophisticated technologies developed by our expert team.  They are suitable for reliably processing diverse materials.


Download
Request Information

Features

01

Compact design for seamless system integration

02

Premium imported core components enabling stable power output

03

Advanced water-cooling and hermetic sealing technologies

04

IP66-rated dust-proof construction for various industrial applications

05

Precision machining capability with minimized heat affected zone

Applications

Mobile phone housing processing

PCB, FPCB micro-hole processing

Plastic precision cutting

Glass cutting and cladding

Non-metal marking: leather, scriptures, etc.

Auto parts processing

Logo precision cutting

image.png image.png image.png image.png


Earbud diaphragm processing Tablet PC shell processing Wire stripping Matte finishing of phone back covers




image.png image.png image.png image.png

Tire marking Deburring of small parts Resin removal Phone case hole cutting









Parameters

HLD-180i
Optical Parameters
Wavelength9.2 to 9.4 μm
Average Power160W
Beam Quality (M²)< 1.2
Output Power Adjustment Range10 to 160 W
Max. Effective Peak Power375 W
Min. Pulse Period10μs(equivalent 100 kHz)
Pulse Energy Range5 to 300 mJ
Modulated Pulse Width Range3 to1000 μs
Duty Cycle≤ 60%
Output Power Stability<±6%
Beam Diameter (1/ e²)6.0 ± 1 mm
Divergence Full Angle＜2±1 mrad
Beam Ellipticity0.83 to 1.2
Polarization (Parallel to Mounting Base)Linear ＞ 100: 1
General Parameters
Input DC Voltage48 V ±1%
Max. Input DC Current50 A
Thermal Load2.5 KW
Min. Cooling Water Flow5.7(Lpm)
Cooling Water Temperature10 ℃ to 35 ℃
Cooling Water Pressure (Inlet)205 to 520 kPa
Physical Properties
Laser Dimensions898 mm × 192 mm × 204 mm (L×W×H)
Laser Weight28KG
