 >   Products  >   M Series  >   DZM-1.5-2x500C-100-E
M Series

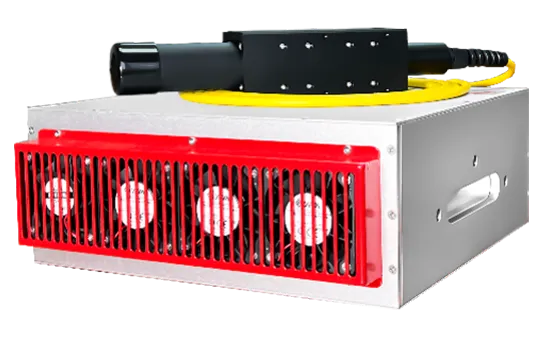

DZM-1.5-2x500C-100-E

Engineered with MOPA architecture, this laser provides independent control of pulse width and repetition rate. This flexibility supports superior performance in precision marking, micro-processing, and challenging material applications.

Download
Request Information

Features

01

Air-cooled MOPA 100W, 1.5mJ

02

Excellent beam quality, M² ＜1.6

03

Independently adjustable pulse width: 2 - 500ns

04

Independently adjustable frequency: 1.6 - 3000kHz

05

Flexible switching between Pulse/Continuous operation modes

Applications

Metal drilling

Deep engraving of metal materials

Micro-welding of thin metal sheets

Precision cutting of thin metal sheets

Laser paint/coating removal, cleaning, and rust removal

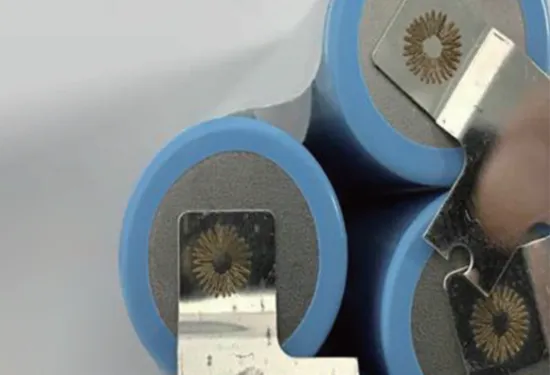

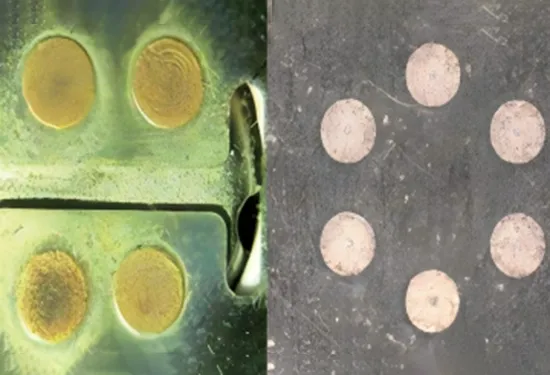

Sample Display





Parameters

DZM-1.5-2x500C-100-E
Optical Parameters
Wavelength1064 nm
Output Power100 W
Max. Pulse Energy1.5 mJ
Max. Peak Pulse Power13 kW
Pulse-to-Pulse Stability (rms)< 3%
Repetition Rate1.6 kHz - 3000 kHz
Polarization RatioRandom
Pulse Width2 - 500 ns
Circularity> 85 %
Beam Quality (M²)< 1.6
Beam Diameter at Exit7 mm
Aiming BeamYes
Power Instability< 3 %
General Parameters
Power Supply24 V
Warm-up Time10 s
Ambient Temperature0 ℃ - 40 ℃
Ambient Humidity10 % - 95 %
Cooling RequirementAir Cooling
Service Life (at standard conditions)18-month Free Warranty
Physical Properties
Laser Dimensions293 mm × 280 mm × 110 mm (L × W × H)
Laser Weight11.5 kg
