CW Fiber Laser - Single Module

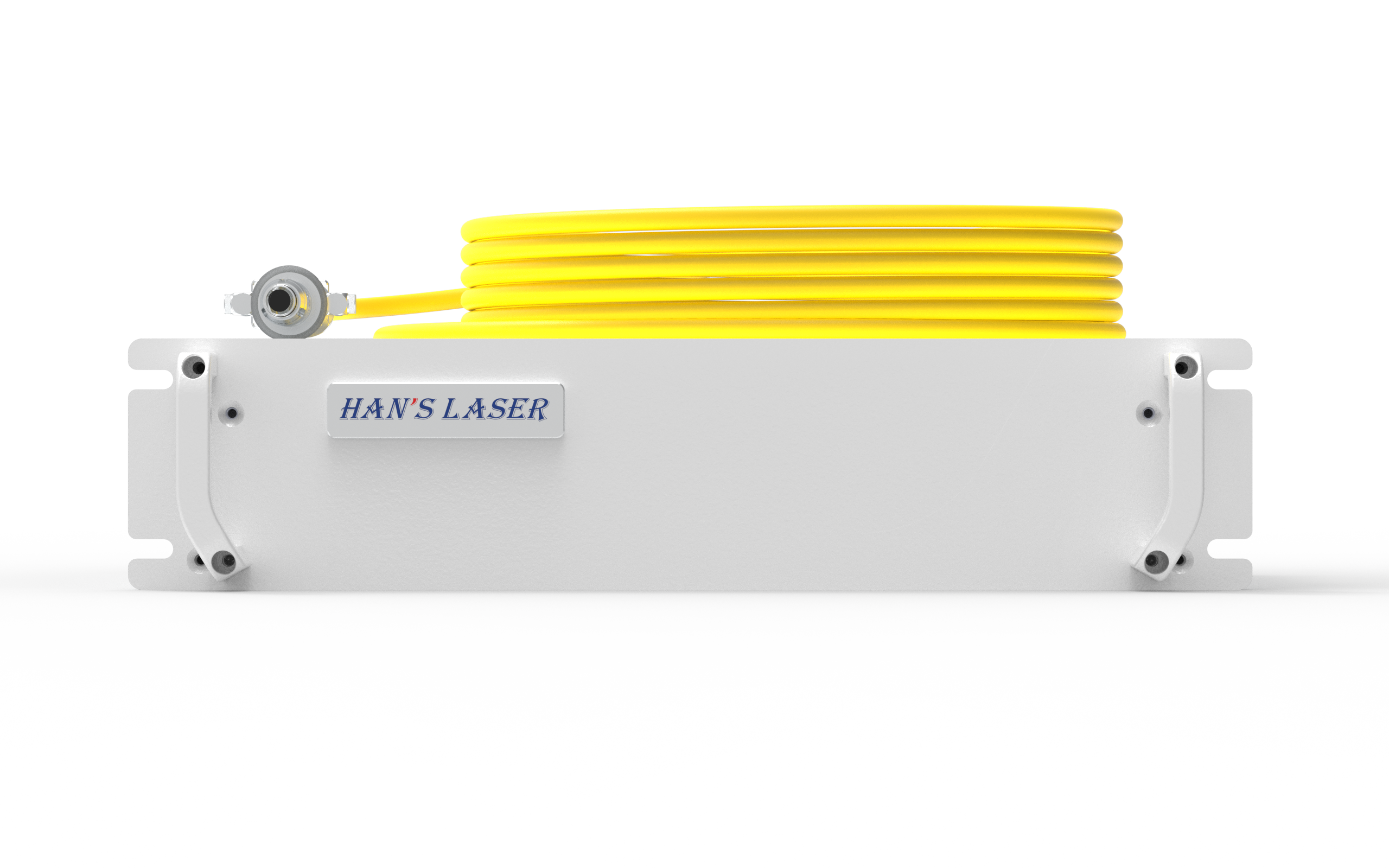

Single Module 1500 W

The HL-PS-1064-10-S is compact, all-in-one design with reliable performance and widely used for processing brittle and superhard materials.

Download

Request Information

Features

Mainly for laser welding, cutting, etc.

Core diameter 25 / 50μm, customizable

Compact structure &High-intensity laser beam

Flat-top beam and uniform energy distribution, resulting in better welding effects

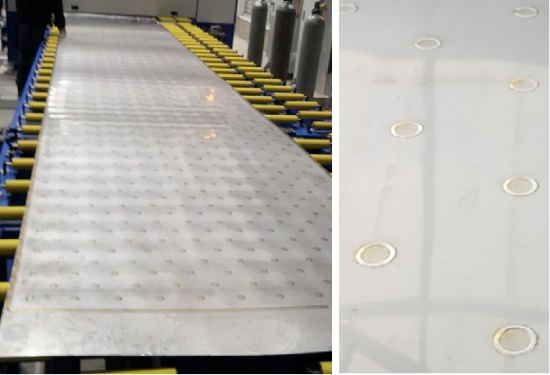

Sample Display

Parameters

CW Fiber Laser - Single Module
Optical Parameters
Power	1500 W
Wavelength	1080 nm
3DB Bandwidth	3 ± 1 nm
Output Connector	QBH
Output Fiber Diameter	20 / 50 μm (Customizable)
Output Fiber Length	10 m (Customizable)
Electro-optical Conversion Rate	＞ 40 %
Power Stability	± 1 %
Beam Quality	M² ≤ 1.4 / BPP ≤ 2
General Parameters
Operating Voltage	AC 220 V, 50 Hz
Control Mode	External Control Interface / Network Port / Bus Control
Cooling	Water Cooling
Physical Properties
Console Dimensions	482 mm × 548 mm × 122 mm (including handles) (L × W × H)
Laser Weight	< 35 kg
